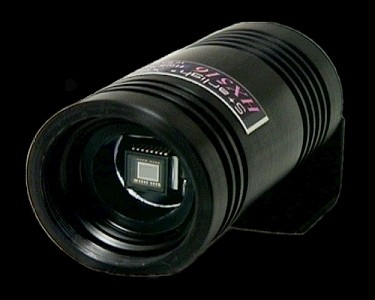

**Venduto**. Sensore per Astronomia CCD Starlight HX516

[Fabercom]

Vendo causa inutilizzo, sensore per Astronomia CCD Starlight HX516 completo di manuali, CD,
adattatore USB, alimentatore e valigetta di trasporto in alluminio. Tutto in ottimo stato.

Caratteristiche tecniche:

# CCD type: Sony ICX084AL HyperHAD CCD with ultra low dark current and vertical anti-blooming.
# CCD pixel data: Pixel size: 7.4 x 7.4uM, Image format: 660 x 494 pixels (unbinned).
# In 2 x 2 binned mode - Pixel size: 14.8 x 14.8uM, Image format: 330 x 247 pixels.
# CCD size: Imaging area: 4.9mm (horizontal) x 3.6mm (vertical).
# Spectral response: Peak response at 520nM (Green), 50% at 400nM (Violet) and 670nM (Near infra-red). (Note the very good blue light performance, excellent for Tri-colour work.)
# Readout noise: Approx. 15 electrons RMS.
# Full-well capacity: Approx. 40,000 e- (160,000 binned).
# Anti-blooming: Overload margin greater than 800x
# Dark current: Typical dark frame saturation time greater than 150 hours. Less than 0.1 electrons/ pixel/ second
# Data format: Full 16 bits.
# Computer interface: 8 bit unidirectional parallel port with bi-directional status lines (Standard Centronics interface). 25 pin 'D' style plug for LPT1, 2 or 3, via a 5 metre x 6mm diameter cable.
# Image download time: Typically 20 seconds with a 66MHz 486 PC, when using a port accelerator module. Only approx. 8 seconds in 2 x 2 binned mode.
# Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 700 milliamps max.
# Cooling system: Regulated constant-current cooling supply built-in. Single-stage thermoelectric cooler to give a CCD temperature of approximately -30C below ambient.
# Size: 50 x 100mm black anodised aluminium barrel with M42 thread at CCD window end and 15 way 'D' style input plug at rear.
# Weight: 200g.

Vendo a 100 Euro + Spese di spedizione con poste italiane.
Accetto pagamento con ricarica PostePay, Paypal o bonifico bancario.
In vendita anche su altri canali.

Faber.com@libero.it

Fabrizio 338 2836066
